When you’re designing AC-DC power converters, it’s easy to overlook some critical aspects. You might skip proper thermal management, risking overheating and shortening the lifespan of components. Forgetting input and output filtering can cause voltage instability and electrical noise. Choosing the wrong switching frequency might increase electromagnetic interference, affecting efficiency. Don’t underestimate the importance of EMI considerations or rigorous testing. These common pitfalls can lead to unexpected failures, impacting reliability and performance.
Neglecting Thermal Management

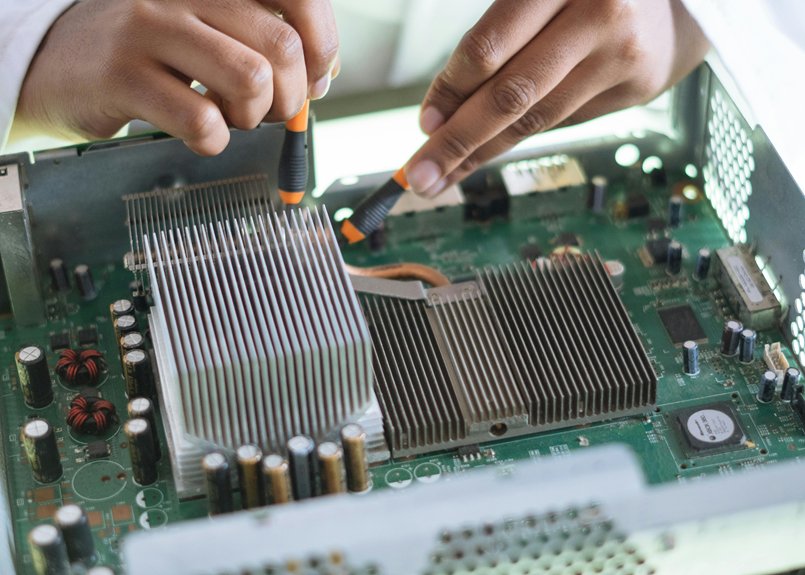

When designing an AC-DC power converter, overlooking thermal management can lead to significant performance issues and potential failures. You must prioritize effective heat dissipation to guarantee your converter operates efficiently. Excessive heat can degrade components, causing reduced lifespan and reliability. Start by selecting components with appropriate thermal ratings and consider using heat sinks or fans to enhance airflow.
Don’t underestimate the importance of layout design. You should position heat-sensitive components away from hot spots and guarantee adequate spacing for ventilation. Additionally, monitor the converter’s temperature during operation to identify any thermal bottlenecks. By actively managing heat, you’ll prevent thermal runaway and guarantee consistent performance. Remember, successful thermal management isn’t just about avoiding failure—it’s about optimizing the entire system’s operation.
Overlooking Input and Output Filtering
While managing heat is essential, don’t ignore the importance of input and output filtering in your AC-DC power converter design. These filters are vital for maintaining stable voltage levels and reducing electrical noise, guaranteeing your device functions efficiently. Without proper filtering, you risk introducing unwanted interference that can disrupt sensitive electronics, leading to performance issues or device malfunctions.
Input filters help prevent external noise from entering the system, while output filters reduce the ripple voltage that can adversely affect the load. Selecting the right components, like capacitors and inductors, is key to achieving ideal filter performance. Don’t underestimate the impact of inadequate filtering; it can compromise your design’s reliability and efficiency. Take the time to implement robust filtering solutions to guarantee a successful design.
Choosing Incorrect Switching Frequency
When selecting the switching frequency for your AC-DC power converter, you’re directly affecting its efficiency and the electromagnetic interference it generates. Choosing the wrong frequency can increase EMI, making mitigation more challenging and potentially leading to regulatory compliance issues. Additionally, incorrect frequency choices can stress components unnecessarily, leading to reduced reliability and lifespan.
Frequency Impacts Efficiency
Selecting the right switching frequency is essential for maximizing the efficiency of AC-DC power converters. When you choose an inappropriate frequency, you risk either increased switching losses or larger passive components, both of which can greatly impact efficiency. High frequencies reduce the size of inductors and capacitors, but they also lead to increased switching losses due to faster shifts. Conversely, lower frequencies minimize these losses but require larger, bulkier components, which can increase the converter’s overall size and cost.
Balancing these factors is key. To achieve peak efficiency, you should aim for a frequency that minimizes losses while keeping component size manageable. This requires careful analysis of your converter’s requirements and potential trade-offs. By doing so, you’ll enhance performance and guarantee your design remains cost-effective.
EMI Concerns and Mitigation
Incorrect switching frequency doesn’t just affect efficiency; it can also lead to significant electromagnetic interference (EMI) issues. When you choose a frequency that doesn’t align with your design requirements, EMI can wreak havoc on your system’s performance. High-frequency switching may cause increased EMI emissions, disrupting nearby electronic devices and violating regulatory standards. On the other hand, low-frequency switching could result in larger component sizes to meet the EMI requirements, adding unnecessary bulk to your design.
To mitigate EMI concerns, consider selecting a suitable switching frequency that balances efficiency and EMI emissions. Implement proper filtering techniques and shielding to minimize interference. Additionally, verify your layout is clean and follows best practices, like keeping high-current paths short and minimizing loop areas, to reduce EMI generation.
Component Stress Factors
Switching frequency plays a critical role in determining component stress within your AC-DC power converter design. Choosing the wrong frequency can lead to excessive heat, inefficiency, and premature failure. A higher frequency reduces the size of magnetic components but increases switching losses and thermal stress. Conversely, a lower frequency might reduce losses but increases the size of inductors and transformers, impacting the overall design footprint.
When selecting a switching frequency, consider your converter’s application requirements. Evaluate thermal management capabilities and guarantee your components can handle the stress at the chosen frequency. Don’t overlook the impact on electromagnetic interference (EMI) either, as it can complicate compliance with regulatory standards. Balancing these factors helps optimize performance and longevity, securing your design’s success.
Ignoring Component Tolerances
When designing AC-DC power converters, overlooking component tolerances can lead to significant performance issues and reliability problems. You might assume that components will always perform exactly as specified, but in reality, every component has a tolerance range. If you ignore these variations, your converter might not work as intended under all conditions. For example, a resistor with a 5% tolerance might cause voltage outputs to vary more than you expect, affecting the overall efficiency and stability.
Take time to evaluate the worst-case scenarios based on component tolerances. Validate your design by simulating these scenarios, ensuring the converter remains functional and reliable. By doing so, you’ll prevent unexpected failures and extend the lifespan of your product. Don’t underestimate the impact tolerances can have on your design.
Failing to Properly Size Components
Understanding component tolerances is just one piece of the puzzle; another critical aspect is properly sizing components. If you choose components that are too small, you risk overheating, poor performance, or even failure. Conversely, oversized components can lead to unnecessary cost and space issues. Carefully consider the power ratings, voltage, and current requirements for each component. Don’t just rely on theoretical calculations; take real-world conditions into account, such as temperature variations and potential load spikes.
Underestimating the Importance of EMI Considerations
Electromagnetic interference (EMI) can be a silent saboteur in AC-DC power converter designs. You might overlook its impact, but EMI can cause significant issues like signal disruption, reduced performance, and even complete system failure. It’s vital to prioritize EMI factors from the start.
Begin by selecting components that minimize EMI emissions. Use filtering techniques to manage noise levels effectively. Proper layout and shielding are essential to prevent interference with surrounding electronics. Don’t forget to reflect on how the converter’s switching frequency might affect EMI emissions.
Skipping Rigorous Testing and Validation
Skipping rigorous testing and validation in your AC-DC power converter design can lead to unexpected failures. You might face issues like insufficient load testing, which can result in devices not performing under real-world conditions. Don’t ignore thermal performance and EMI compliance, as these can lead to overheating and regulatory setbacks.
Insufficient Load Testing
Why is load testing often overlooked in AC-DC power converter design? You might think your design will handle any load thrown its way, but skipping load testing can lead to unexpected failures. It’s tempting to rely solely on theoretical calculations, believing they’re sufficient. However, without real-world testing, you risk missing critical issues that arise under varying loads. Load testing guarantees your converter operates effectively across its entire range, catching problems like voltage fluctuations or inefficiencies that could damage connected devices. Testing your design under different load conditions helps confirm its reliability and performance. Don’t cut corners; thorough load testing validates your power converter’s robustness and prevents costly failures. Remember, a tested design is a trusted design.
Ignoring Thermal Performance
When designing AC-DC power converters, overlooking thermal performance is a mistake that can lead to significant issues. Don’t underestimate the importance of proper heat management. Components generate heat, and without adequate cooling, they may overheat, causing reliability problems or even failures. Be proactive and include thermal analysis in your design phase.
Use simulation tools to predict how heat dissipates through your converter, guaranteeing components stay within safe temperature limits. Consider heat sinks, fans, or other cooling methods to enhance thermal efficiency. Test prototypes under various conditions to validate your design. Skipping this step can result in costly redesigns or recalls. Remember, effective thermal management extends the lifespan of your product and guarantees peak performance. Don’t let thermal issues catch you off guard.
Overlooking EMI Compliance
Neglecting electromagnetic interference (EMI) compliance can lead to a cascade of problems in AC-DC power converter design. If you skip rigorous testing and validation, you risk non-compliance with regulatory standards, which can result in failed certifications and costly redesigns. EMI issues can cause your device to interfere with other electronic equipment, leading to malfunction or damage.
Conclusion
When designing an AC-DC power converter, don’t underestimate the impact of common mistakes. Prioritize thermal management to avoid overheating and guarantee your components last. Pay attention to input and output filtering to maintain voltage stability and reduce electrical noise. Select the right switching frequency to minimize EMI and boost efficiency. Always consider component tolerances and sizing. Finally, never skip thorough testing and validation—it’s the key to reliable performance and avoiding costly field failures.
